Description

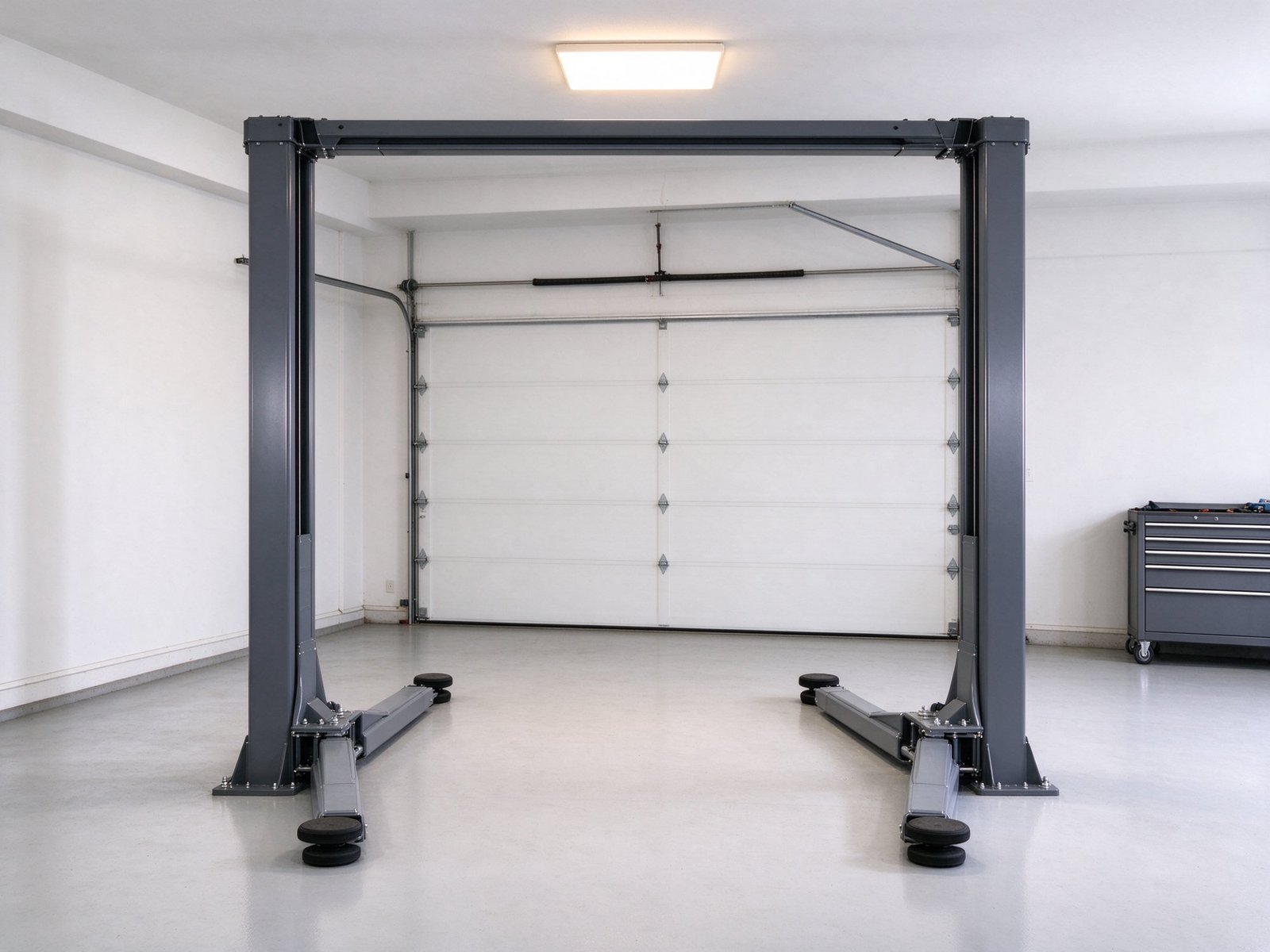

A full-height two-post lift for home garages and small workshops that need open floor space under the vehicle. The overhead crossbar carries the equalizer cables and hydraulic hose above the bay, so nothing runs across the floor and creepers, jacks and oil drains roll freely between the columns.
Key features
- Two welded steel columns in matte graphite powder coat joined by an overhead crossbar

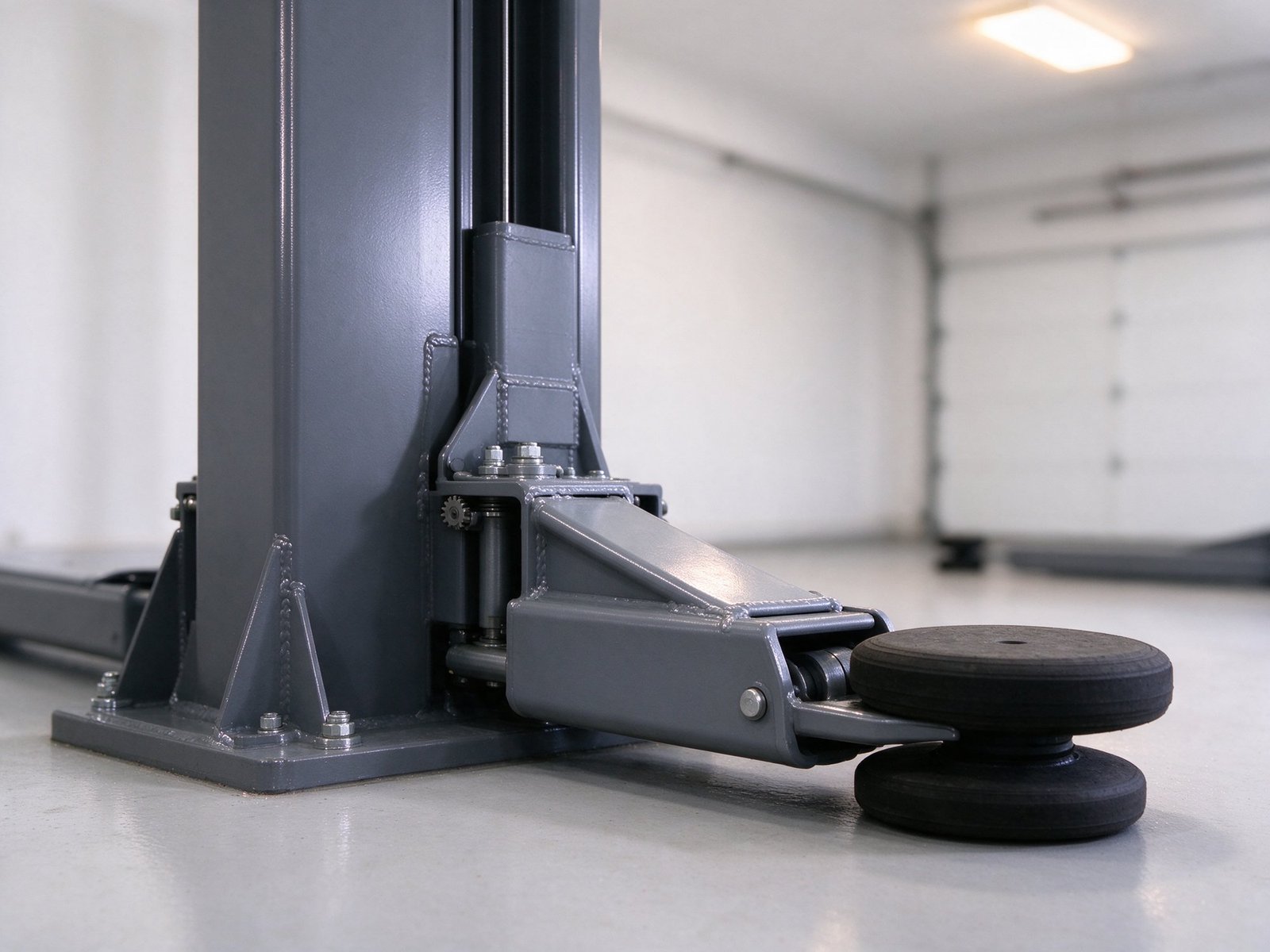

- Four telescoping swing arms with round rubber lift pads and stackable height adapters
- Mechanical safety locks engage automatically as the carriages rise; cable-operated release
- Single hydraulic cylinder per column, synchronized by steel equalizer cables
- Side-mounted electric-hydraulic power unit with push-button raise and lever lowering
Specifications
| Lifting capacity | 10,000 lb (2,500 lb per arm) |
|---|---|
| Maximum lift height | 72 in |
| Minimum pad height | 4 in |
| Overall height | 144 in |
| Width outside columns | 136 in |
| Drive-through clearance | 100 in |
| Power unit | 220 V single phase, 2 HP |
| Finish | Matte graphite powder coat |
| Shipping weight | approx. 1,480 lb (curbside freight delivery) |
Assembly and use
Ships by freight on two pallets. Installation requires a level concrete floor at least 4 1/4 in thick with a minimum strength of 3,000 PSI, a ceiling height of at least 12 ft 2 in and a dedicated 220 V circuit. Anchor bolts and hydraulic fluid are not included. We recommend installation by a qualified lift installer or contractor; read the full manual before first use and always lower the lift onto its locks before working underneath.
Care
Check cable tension, anchor bolts and lock operation monthly and lubricate the column slides every three months.
Before you order: measure the ceiling height, the floor thickness and the width of the bay, and check the vehicle’s lifting points in its owner’s manual. Not sure the lift fits your garage? Contact us before ordering and we will go through the specifications with you.
