Description

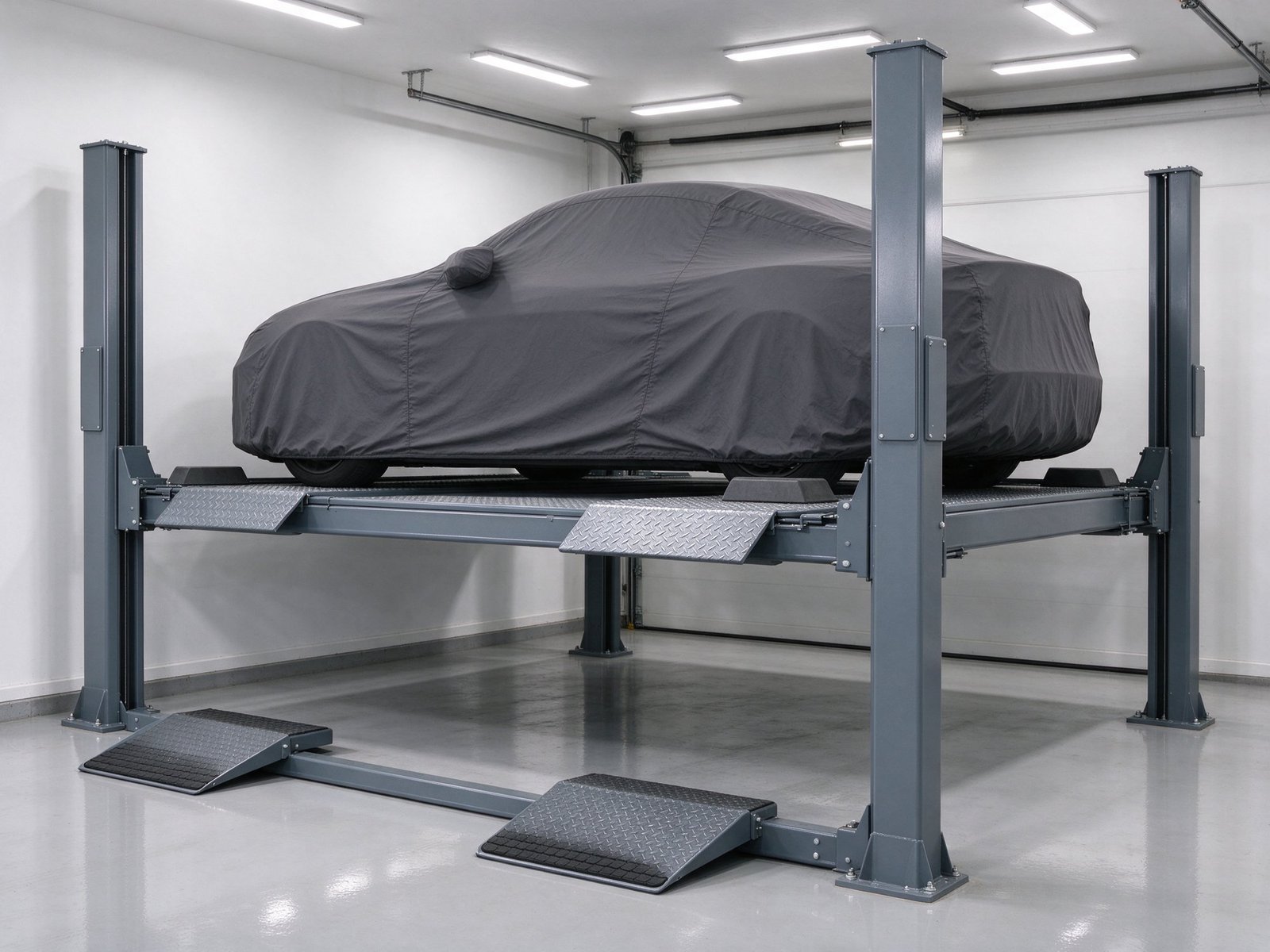

A drive-on four-post lift that doubles the parking space of a single garage bay: store one vehicle on the raised runways and park a second one underneath. Because the vehicle sits on its wheels, it is also a convenient platform for oil changes, exhaust work and detailing.
Key features

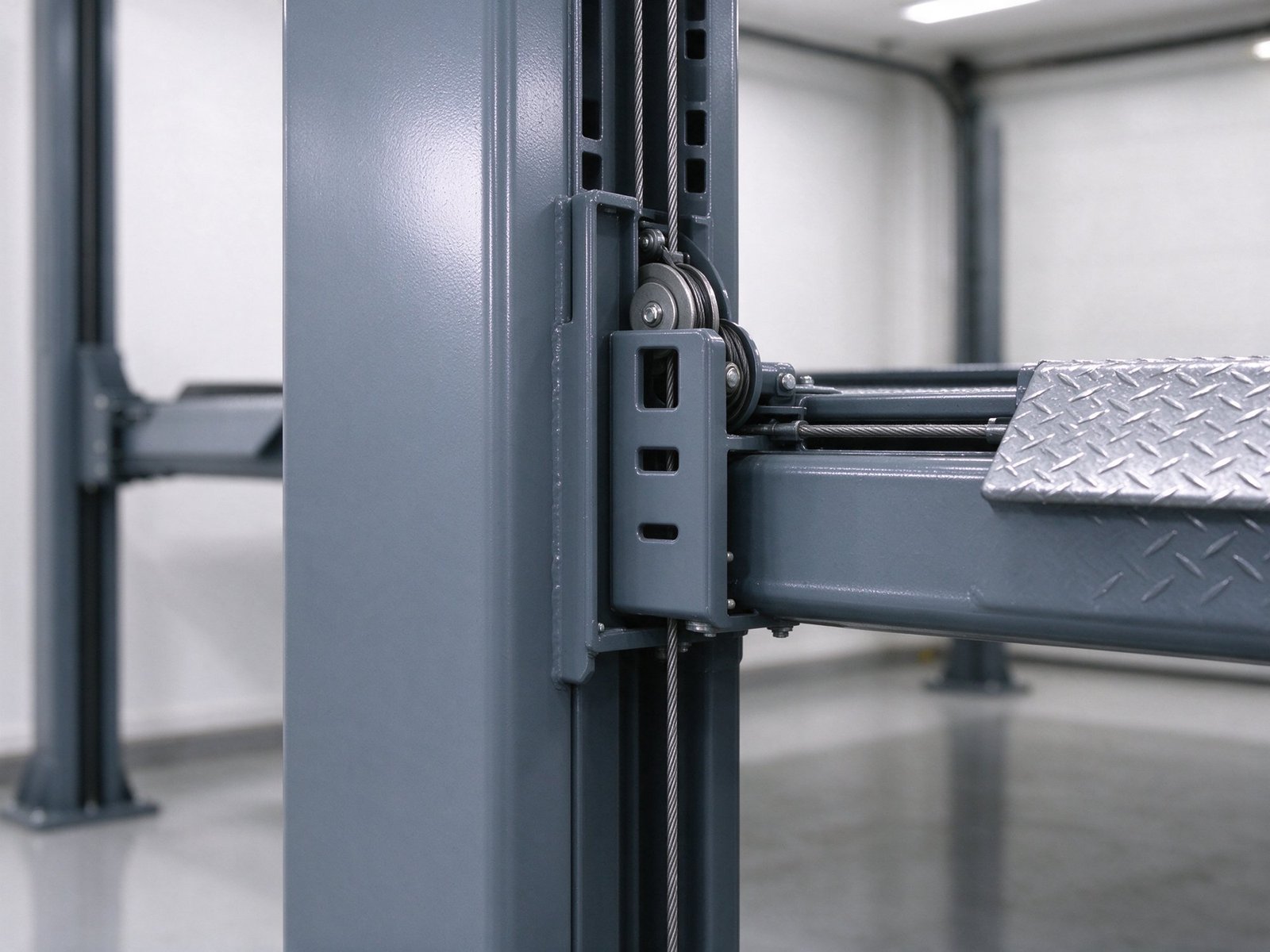

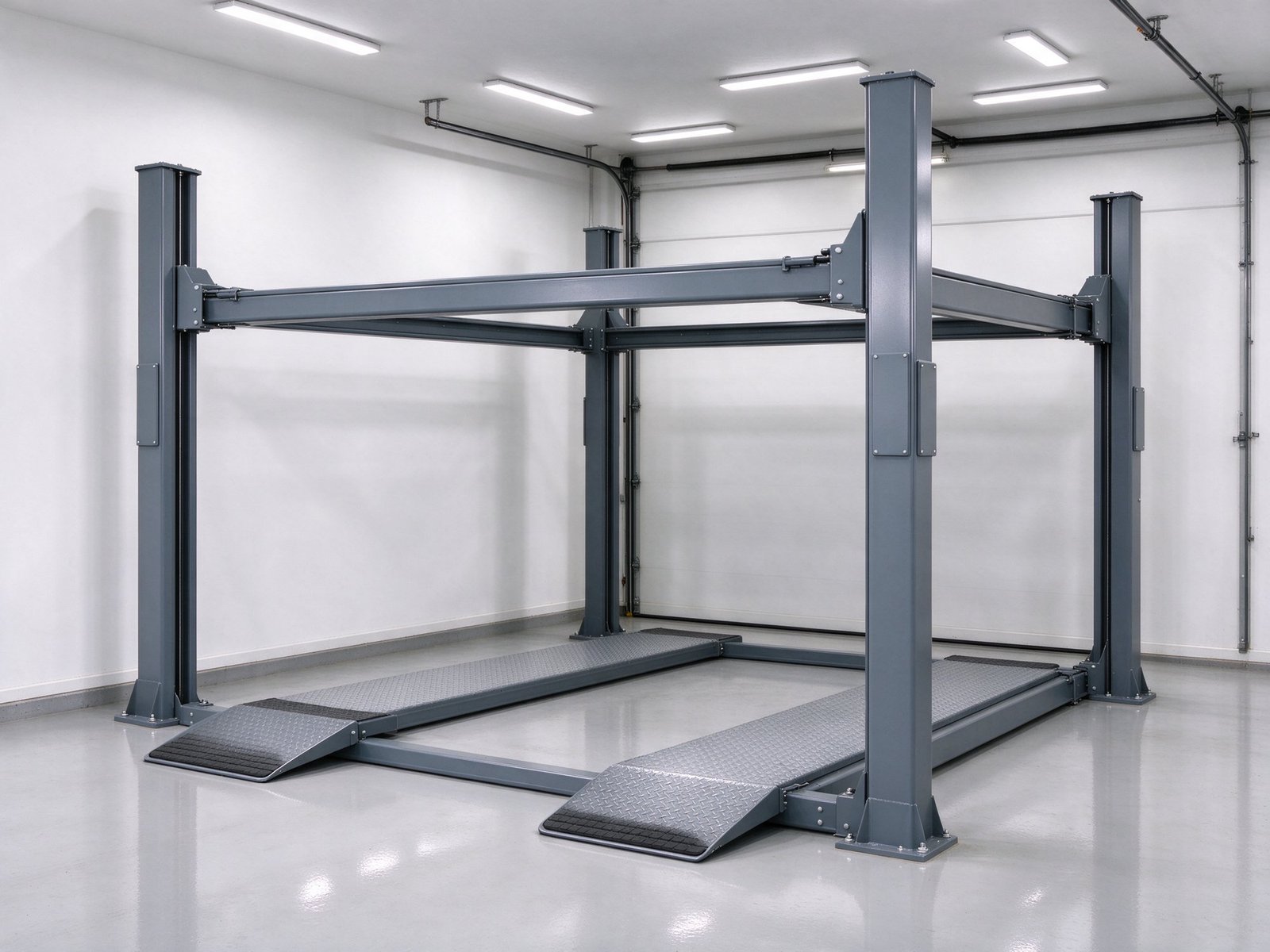

- Four square steel posts in matte slate grey powder coat with ladder-style safety lock slots
- Two diamond-plate runways with adjustable inner runway for different track widths
- Approach ramps, three drip trays and one jack tray included
- Multi-position mechanical locks with single-point release handle
- Free-standing design – floor anchoring recommended but not required on level concrete
Specifications
| Lifting capacity | 9,000 lb |
|---|---|
| Maximum rise | 70 in |
| Runway length | 168 in |
| Overall length | 210 in |
| Overall width | 105 in |
| Post height | 85 in |
| Power unit | 220 V single phase, 2 HP |
| Finish | Matte slate grey powder coat |
| Shipping weight | approx. 1,850 lb (curbside freight delivery) |
Assembly and use
Ships by freight on pallets. Requires a level concrete floor at least 4 in thick, a ceiling height of about 12 ft for stacking two average cars, and a dedicated 220 V circuit. Assembly takes two to three people with a forklift or engine hoist for the runways; professional installation is recommended.
Care
Inspect cables and sheaves monthly, keep the lock ladders free of debris and lubricate the pulleys every three months.
Before you order: measure the ceiling height, the floor thickness and the width of the bay, and check the vehicle’s lifting points in its owner’s manual. Not sure the lift fits your garage? Contact us before ordering and we will go through the specifications with you.
