Description

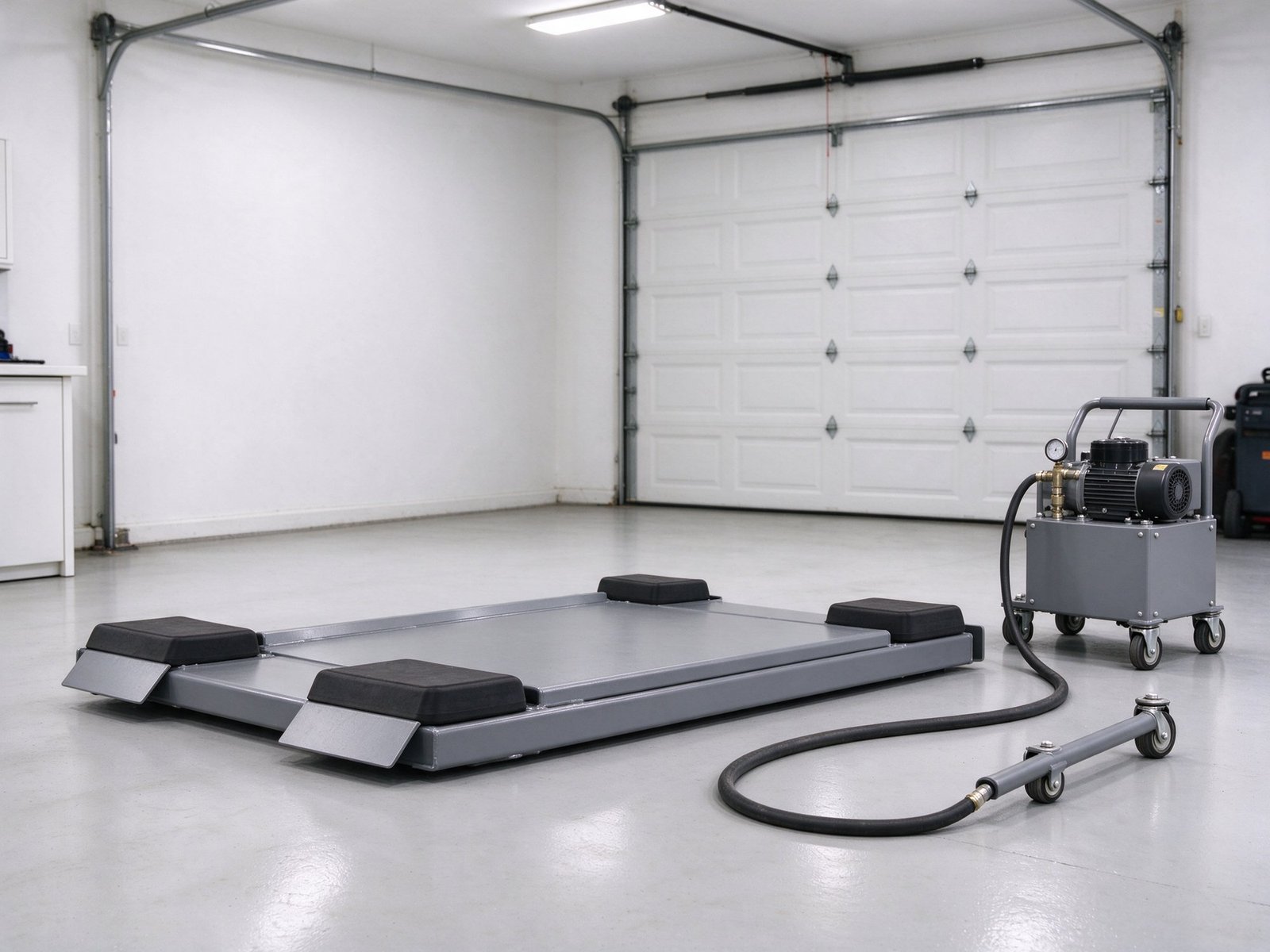

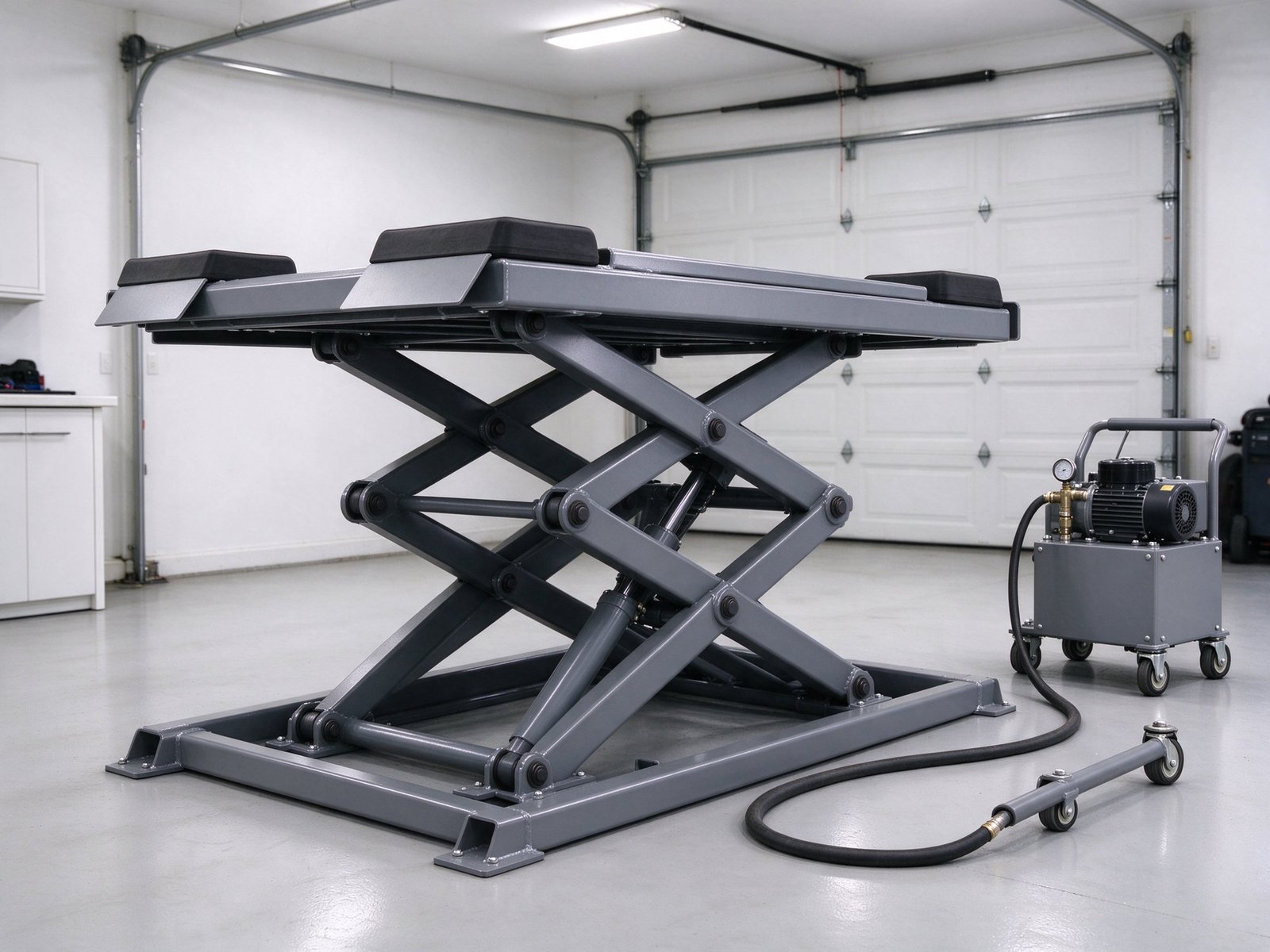

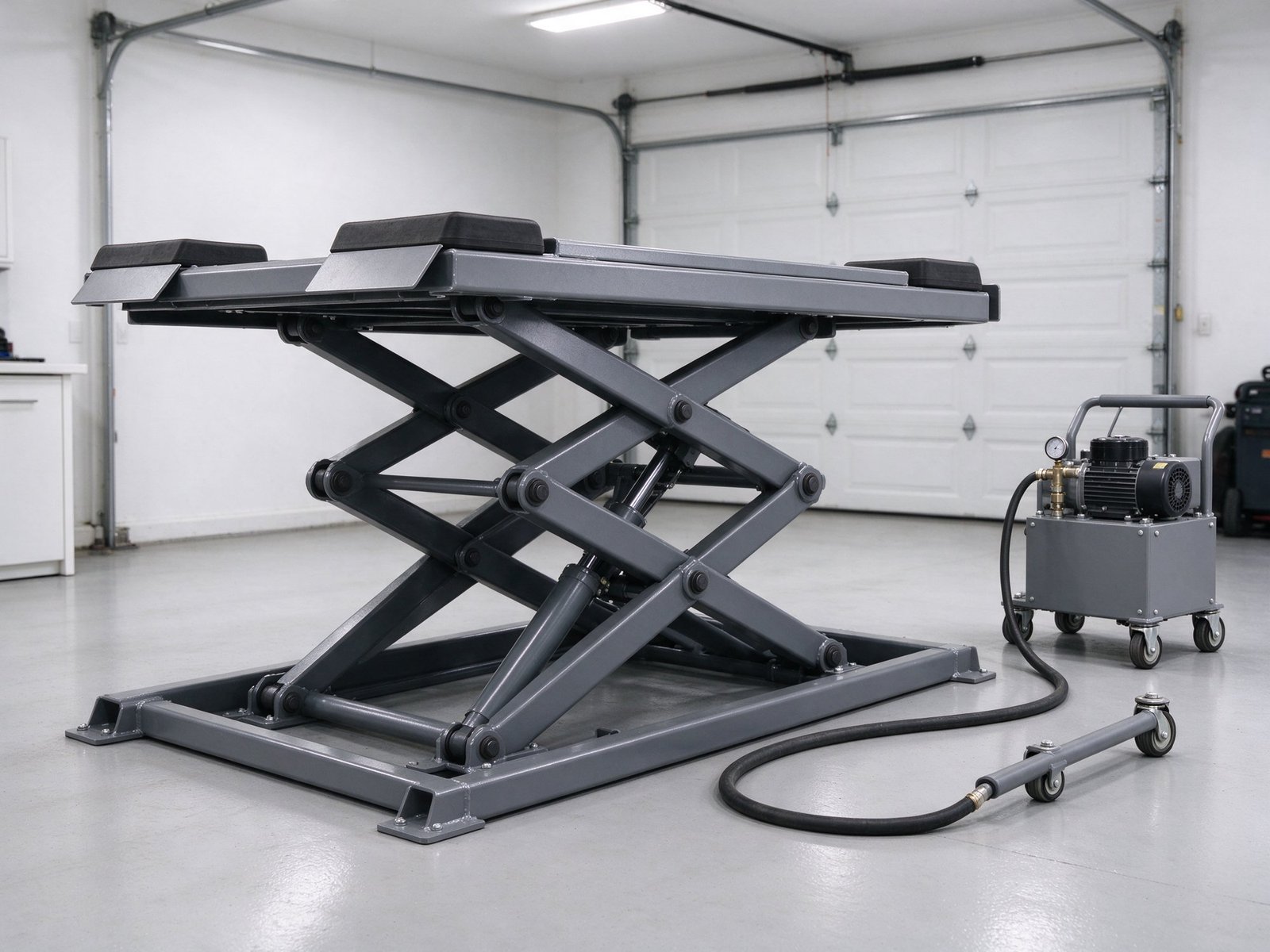

A mid-rise scissor lift that brings the vehicle to a comfortable waist working height for brakes, tires, suspension and bodywork, then lowers to a low profile so it can stay in the bay or be towed aside. No overhead structure means it works in garages with low ceilings.
Key features

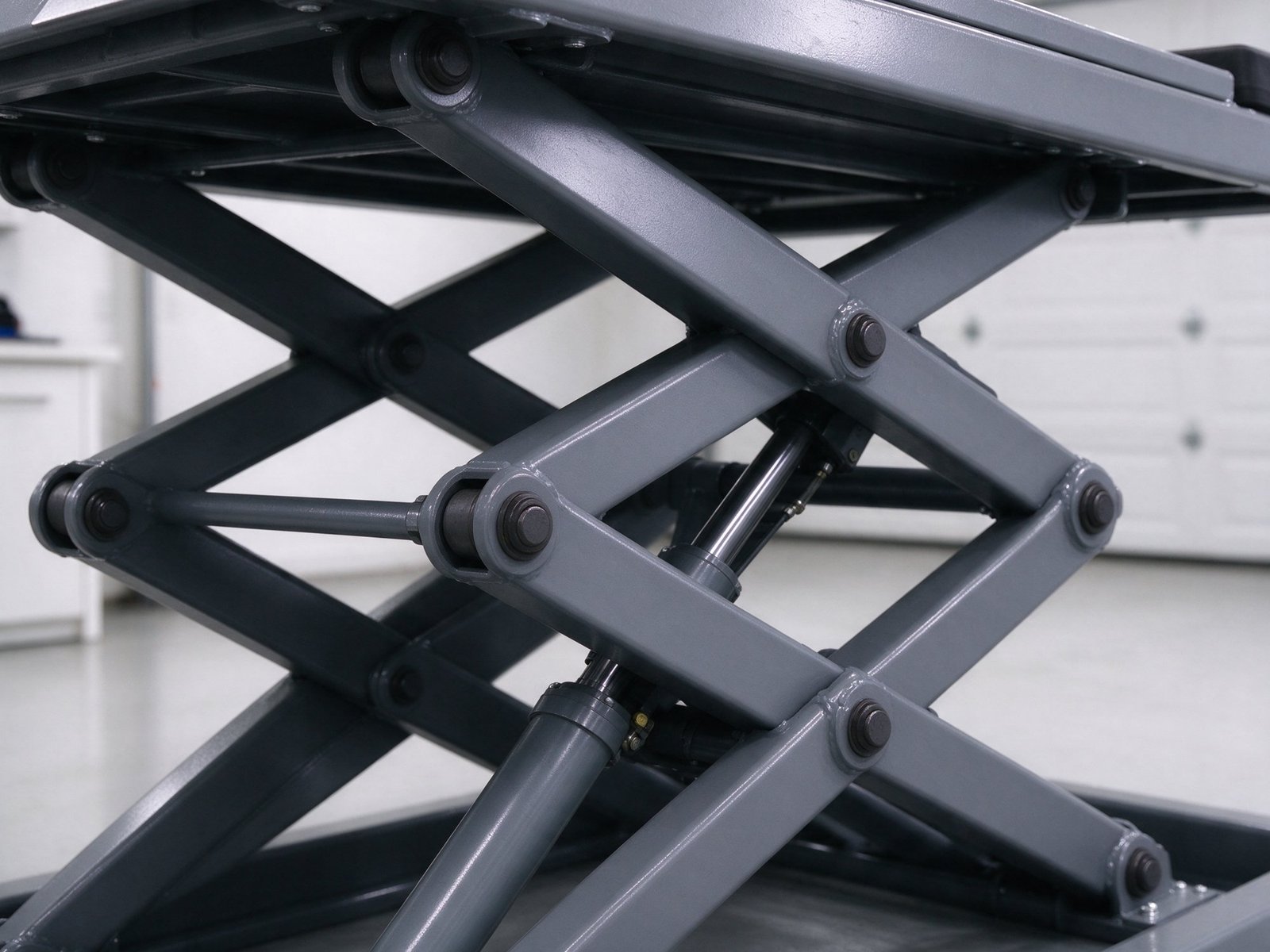

- Double X scissor frame in matte graphite powder coat with greased pivot pins
- Platform with four rubber lift blocks for frame contact points
- Separate rolling hydraulic power unit with hose – place it where it is out of the way
- Detachable tow handle and wheel kit to move the lift around the garage
- Mechanical safety locks at multiple heights
Specifications
| Lifting capacity | 6,000 lb |
|---|---|
| Maximum lift height | 48 in |
| Lowered height | 5 in |
| Platform size | 70 x 40 in |
| Power unit | 110 V, 1.5 HP, 20 A circuit |
| Finish | Matte graphite powder coat |
| Shipping weight | approx. 680 lb |
Assembly and use
Delivered nearly assembled: connect the hydraulic hose, fill the reservoir and bleed the system. Use on level concrete only. Read the manual before first use and always lower onto the mechanical locks before working under the vehicle.
Care
Check the hydraulic fluid level and hose fittings monthly and grease the scissor pivots every three months.
Before you order: measure the ceiling height, the floor thickness and the width of the bay, and check the vehicle’s lifting points in its owner’s manual. Not sure the lift fits your garage? Contact us before ordering and we will go through the specifications with you.
