Description

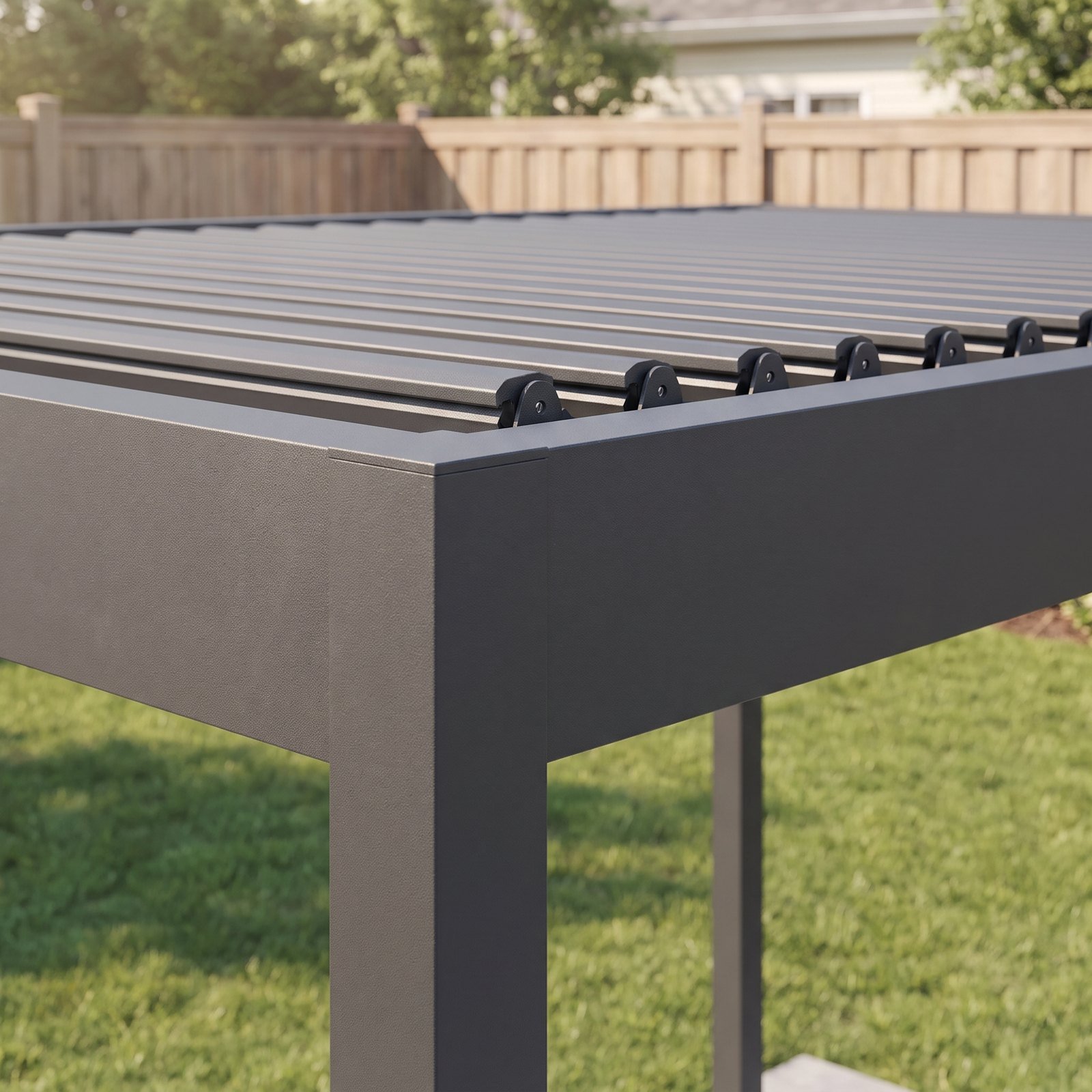

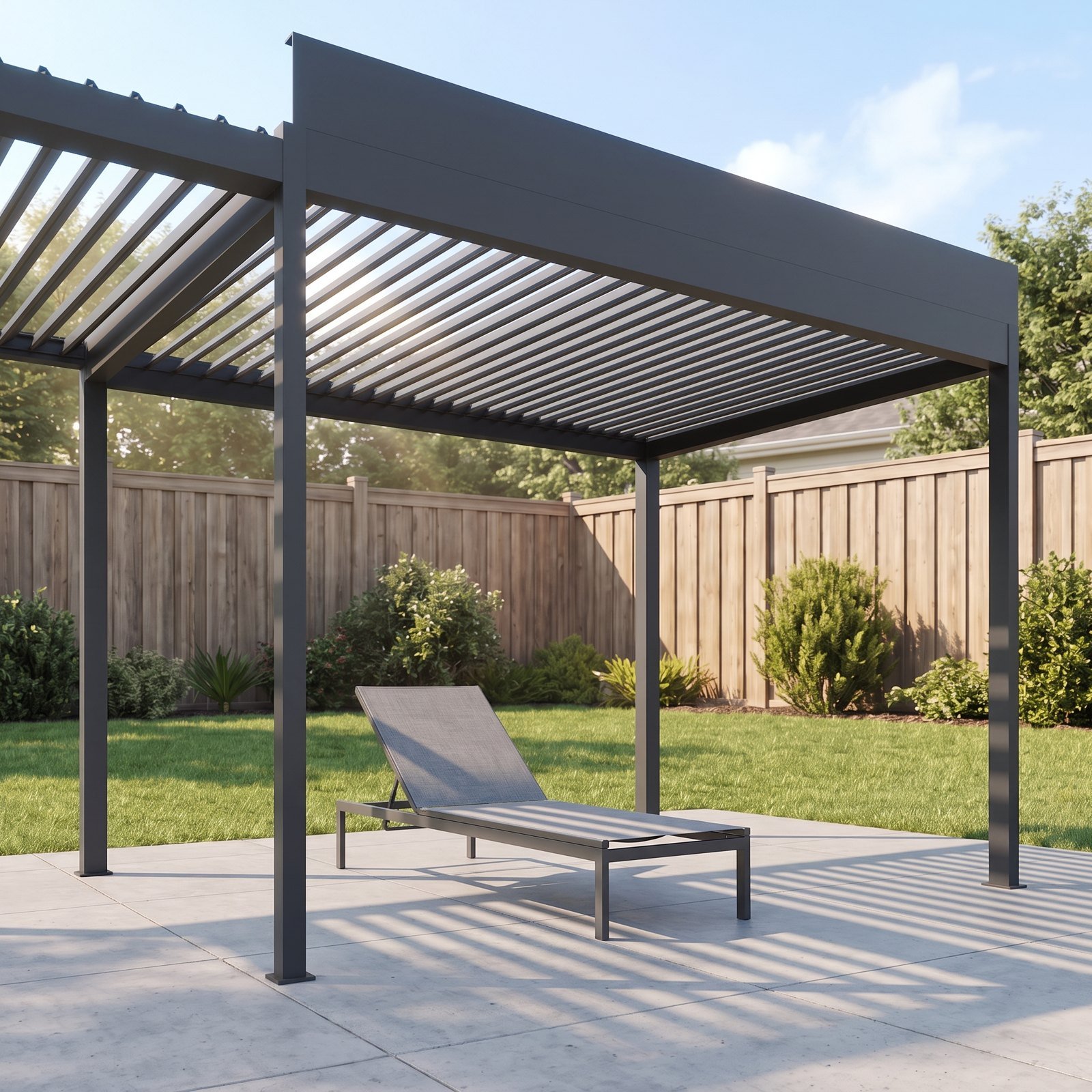

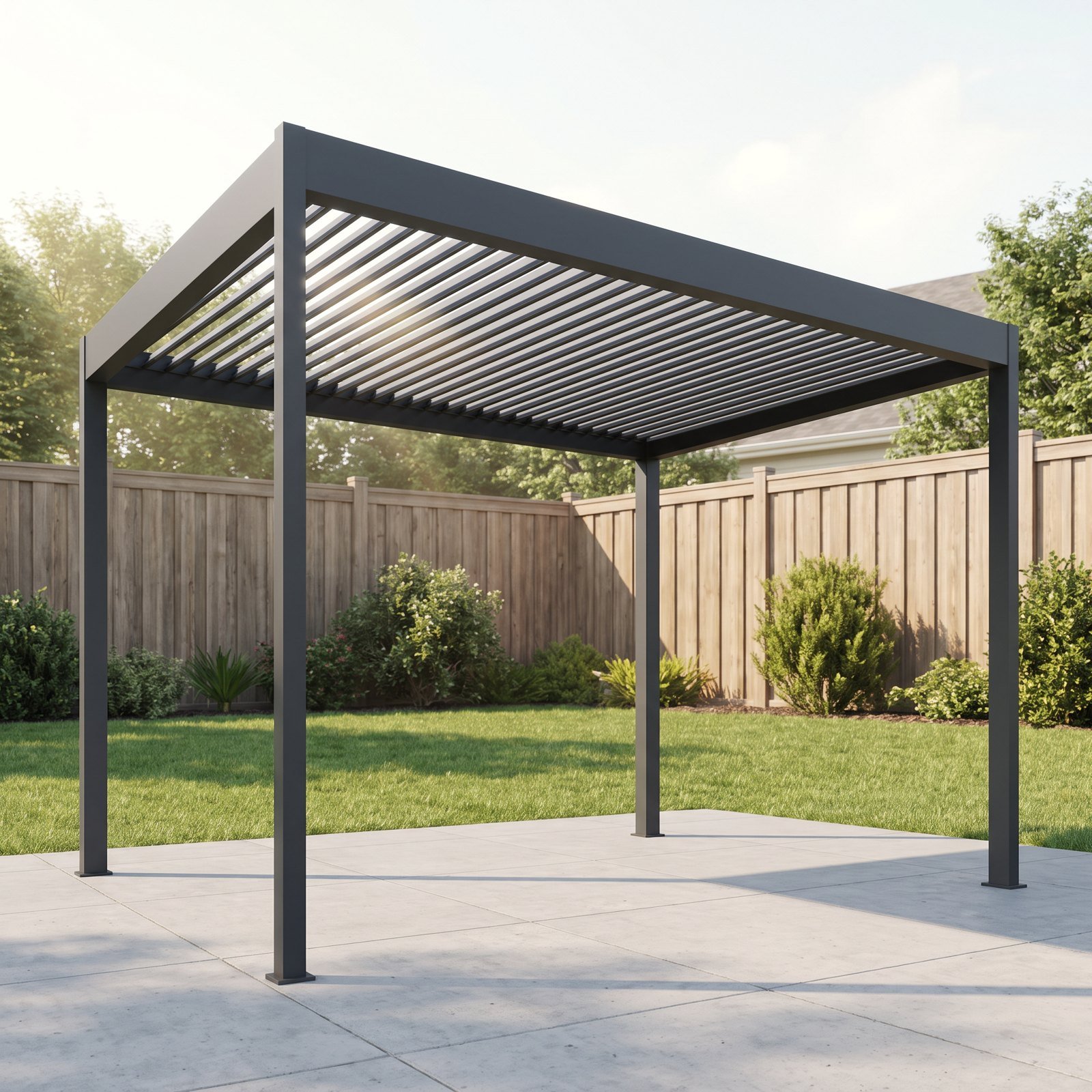

This freestanding aluminum pergola gives a patio a solid, architectural roof that you can adjust through the day. The roof is a row of extruded aluminum louvers that rotate from fully open to fully closed with a hand crank: open them for sun, angle them for filtered shade, or close them so rain runs off into the built-in gutter channel and down through a corner post.
Highlights
- Adjustable louvers rotate from 0 to about 150 degrees with a hand crank
- Closed louvers shed rain into an integrated gutter that drains through one corner post
- Rust-free extruded aluminum frame with a matte charcoal powder-coat finish
- Four 4.7 x 4.7 in square posts with base plates for anchoring to concrete
- Covers roughly 130 sq ft – room for a six-seat dining set or a sectional
Specifications
| Overall size | 13 ft L x 10 ft W x 8 ft 10 in H (156 x 120 x 106 in) |
|---|---|
| Clearance under beam | approx. 7 ft 9 in |
| Frame | extruded aluminum, powder-coated charcoal |
| Louvers | aluminum, 6.3 in wide, hand-crank operated |
| Shipping weight | 418 lb (3 boxes on one pallet) |
Assembly: two adults, a ladder and a drill with a masonry bit; plan on 5 – 7 hours. Anchor bolts for a concrete slab are included. For decks or soil, use footings sized by a local contractor. The illustrated manual walks through post, beam, louver and crank installation.
Care: rinse with mild soapy water twice a season and keep the gutter channel clear of leaves. Open the louvers fully before heavy snow and brush snow off rather than letting it build up.
